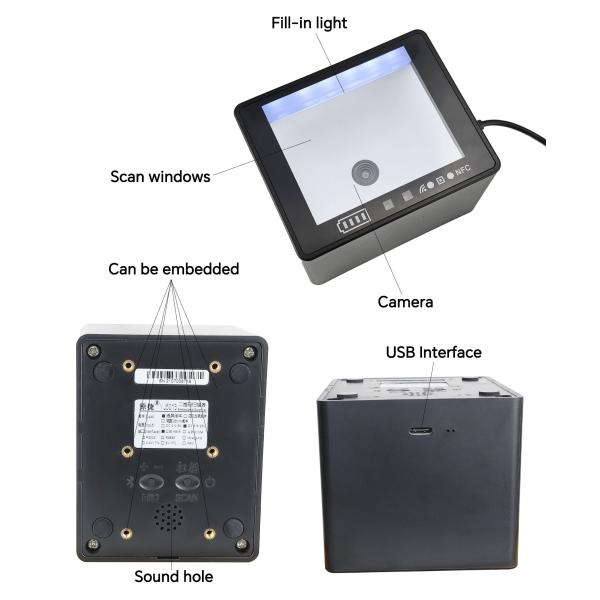

Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding

Name: Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding
Brand: YJFIRST
Price: 49 USD

Quality Access Control RFID NFC Scanner Bluetooth QR Code Card Reader For Integrated Embedding for sale

Brand Name : YJFIRST

Model Number : YJ-5013N

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : Guangdong, China

MOQ : 1Pcs

Price : $49

Payment Terms : T/T

Supply Ability : 20000pcs/month

Delivery Time : 3-7 work days

Packaging Details : Gift box

Product name : RFID NFC Scanner

type : Barcode Scanner

scan element type : CMOS

place of origin : Guangdong, China

warranty(year) : 1-Year

after-sales service : Return and Replacement, Others, Repair

Contact Now

YJFIRST ISO14443 Access Control RFID NFC Scanner QR Code Card Reader RS232 Barcode Scanner for Integrated Embedding

Features:

Capable of scanning both one-dimensional and two-dimensional codes
Bluetooth and 2.4G dual-mode wireless transmission (optional)
NFC card swiping (optional)
OCR reading (optional)
Voice broadcasting
3.9mil paper and phone code scanning can be pasted on glass for scanning
Wired support for RS232 and USB, with optional RS485, Vezel, and TTL levels

Parameter

Ability to read
Identification accuracy	2 D≥ 5 mil, 1 D ≥4 mil
Scan depth of field	test condition	depth of field
	Code 128 10mil 18bytes Paper copy code	0~90mm
	Code 128 18bytes Mobile phone code	0~120mm
	QR 10mil 160bytes Paper copy code	0~55mm
	DM 15mil 100bytes Paper copy code	0~90mm
	QR 18bytes Mobile phone code	0~255mm
Print contrast	Minimum 20% of the reflection difference
Customer interface
Trigger way	Infrared single induction (default), infrared continuous
Prompting mode	Buzzer, code reading, NFC, wireless LED indicator, power indicator, horn (custom *)
Wired communication interface	USB Type C
Data wire	USB Type C 1.2, m-straight line
Supply electricity
Cell	Capacity 2000mAh, available with mobile phone charger 5V 2A, charging time 2h
Operate time	10 seconds auto-sensing code scanning once, BT transmission to the host computer, working time of not less than 24 hours
Dormancy	Wake-up time less than 0.1 sec, BT recovery less than 0.1 sec
Shut down	Shutdown current approx. 500uA

FAQ

1.Q:Can you send sample? A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.

2.Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.

3..Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.

4.Q:Can you offer OEM/ODM service for our order?
 A: We can support different aspects customization service including hardware/mechanical design.But there is a MOQ request.

5.Q:How many kinds of languages your printers support?
 A: So far our printers support at least 54 kinds of different languages for worldwide market.Such as English/Spanish/
 Japanese/Korea/Arabic/Hebrew/Persian and so on.

 6.Q:Can i use your printer in android OS with USB?
 A: Our printers can flexibly run on windows/linux/android OS,no matter you used serial or USB interface for your
 application.And we will offer ESC/POS commands manual,USB driver and SDK for your technical reference.


Product Tags:

Access Control RFID NFC Scanner

Bluetooth QR Code Card Reader

Access Control QR Code Card Reader
