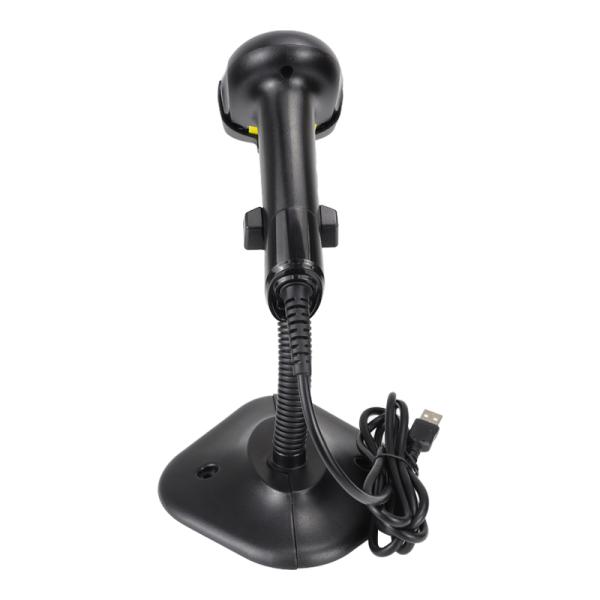

Customized Handheld QR Code Scanner CMOS 2D 1D Barcode Scanner Wired

Brand Name : YJFIRST

Model Number : YJ-2208

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : $18

Payment Terms : T/T

Supply Ability : 20000pcs/month

Delivery Time : 3-7 work days

Packaging Details : Gift box

Product name : Handheld QR Code Scanner

private mold : Yes

products status : Stock

interface type : usb

optical resolution : 5mil

scan speed : 280 times/sec

Contact Now

Handheld QR Code Scanner Wired UV 2D Barcode Scanner CMOS Barcode Scanner 1D 2D Handheld Barcode Reader Scanning Gun

Products Description
Model:
YJ-2008 wired two-dimensional bar code scanner
Scan element type:
CMOS
Pixel:
640*480
Illuminant:
White light LED lighting, red light LED aiming
Scan pattern:
Key trigger, induction scan, automatic scan, continuous scan
Minimum resolution:
0.127mm(5mil) @Code 39, PCS=90%
Service environment:
0°C-50°C
Storage temperature:
-20℃~+70℃
Storage humidity:
5% -95% without condensation
Ambient illumination:
0~8,600 Lux (fluorescent) 0~100,000 Lux (daylight)
Input voltage:
5VDC±10%
Working current:
150mA
Depth of field:
EAN-13 45mm-269mm (13mil 13 bytes)
Code39 35mm-119mm (5mil 7 bytes)
QR Code 19mm-185mm (15mil 30 bytes)
Data Marix 45mm-116mm (10mil30 bytes)
PDF 417 40mm-105mm (6.67mil 30 bytes)
Field of view Angle:
36° (H) x 27° (V)
Interface support:
USB, USB-COM, RS-232 (optional)
Visual dimensions:
160mm * 60mm * 82mm (length * width * height)
Box size:
180mm * 110mm * 80mm (length * width * height)
Product weight:
Approximately 233g (not including packaging and accessories)
rough weight:
About 162.5g (including packing wire and accessories)
Cable standard:
Direct line: 1.8m
Pigment:
black
Material quality:
ABS+PC
Sealing grade:
IP52
Fall height:
1.5m
Decoding ability:
1D: Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),Code39,Code93,Codabar
2D: QR Code, Data Matrix ,PDF417
scanning speed:
280 Times / second

Customization options

Customized logo (Min. order: 100 pieces)
Customized packaging (Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)

Customized Handheld QR Code Scanner CMOS 2D 1D Barcode Scanner Wired

Customized Handheld QR Code Scanner CMOS 2D 1D Barcode Scanner Wired

Customized Handheld QR Code Scanner CMOS 2D 1D Barcode Scanner Wired

Customized Handheld QR Code Scanner CMOS 2D 1D Barcode Scanner Wired

Customized Handheld QR Code Scanner CMOS 2D 1D Barcode Scanner Wired

Company Profile
Shenzhen Yuanjie Information Technology Co., LTD. (YJFIRST) is one of the leading professional barcode scanner
manufacturers in China. YJFIRST specializes in barcode reading technology and has more than 10 years of experience
in the barcode scanning technology industry. YJFIRST's products include 1D and 2D barcode scanners, laser and CCD
barcode scanners, wireless barcode scanners, barcode scanner modules, scanning engines, omnidirectional scanning
platforms, and more. All products have passed CE, FCC, RoHS, IP54, RF certification, has been widely used in logistics,
supermarket, retail, medical, postal communication, office automation, manufacturing and other fields.
We support OEM and ODM orders, welcome to visit our factory in China ! We will provide customers with high quality
products at competitive prices.
Exhibition
Applications
Transportation
FAQ
Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient,
expliantion by email or call in time.
